Two Way Saddle Mount, Max Bundle Diameter 3.5", Stud Diameter 0.25", PA66HIRHS, Gray, 500/pkg

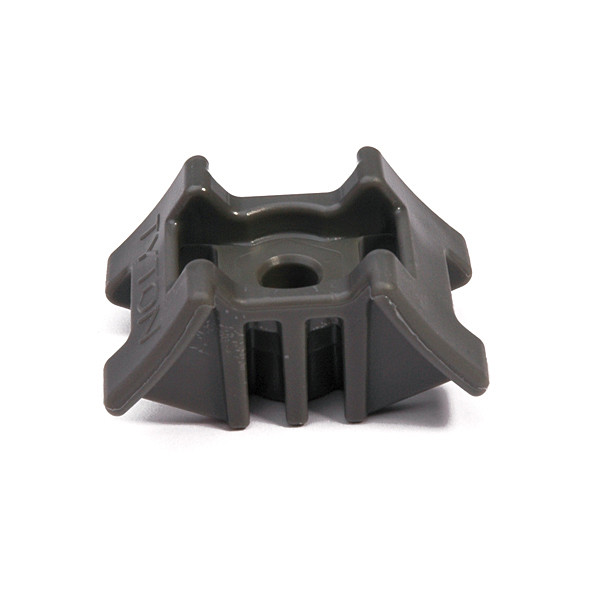

HellermannTyton's saddle mount can be installed between two bundles (such as wires, cables, hoses, tubing, conduit, etc�) to separate them and prevent chafing and wear. Fastened to a frame rail or mounting bracket, this "H" profile on the saddle mount provides a tight circumferential loop on large and small bundles.
- Two way saddle separates bundles from wear and chafing.
- Socket counterbore allows securing with a socket wrench from the top side for use with a weld stud or bolt.
- Made from impact modified, heat stabilized, UV resistant material making it ideal for heavy duty applications.
Std. Pack: 500
Color: Gray (GY)
Material: Polyamide 6.6 high impact modified, heat stabilized, UV resistant (PA66HIRHS)
Type: S2CM25
Length: 1.8 "
Width: 1.2 "
Height: 0.9 "
MNT: NA
Max. Bundle Dia.: 3.5 "
Min. Bundle Dia.: NA
Reel Length: NA
Wall Thickness: NA
Supplied Diamater: NA
Operating Temp.:-40F to +230F (-40C to +110C)
Labels Per Column: NA
Labels Per Row:NA
Labels Per Sheet: NA
