With the IDEC SmartRelay you have acquired a logic module that meets the stringent quality requirements of ISO 9001. Proving reliable time after time, these intelligent logic modules are the ideal controller for simple automation tasks. A new fifth-generation of FL1E SmartRelays offer functions to give you even more flexibility and convenience. Advances include extended memory, a brighter display with higher LCD contrast, improved analog and high-speed inputs, an external text display, and upgraded programming software.

The IDEC SmartRelay can be used in many applications. Due to its flexibility and ease of operation the IDEC SmartRelay offers you a highly economical product for almost any application. WindLGC is the programming software for PCs. It runs under Windows® and helps you to become comfortable with your IDEC SmartRelay in a familiar environment. You can write, test, print out and archive your programs, independent of the IDEC SmartRelay.

Features:

New Features of the Current Basic Device (FL1B)

What is IDEC SmartRelay?

IDEC SmartRelay represents the universal IDEC logic module. IDEC SmartRelay integrates

IDEC SmartRelay offers solutions for domestic and installation engineering (e.g. for stairway lighting, external lighting, sun blinds, shutters, shop window lighting etc.), switch cabinet engineering and mechanical and apparatus engineering (e.g. for gate control systems, ventilation systems, or rainwater pumps etc.). IDEC SmartRelay can also be implemented for special control systems in conservatories or greenhouses, for control signal processing and, by connecting a communication module (e.g. ASi) for distributed local controlling of machines and processes. Special models without operator and display units are available for series production applications in small machine, apparatus, switch control and installation engineering.

View this product in our store!

What is a Circuit Breaker?

A circuit breaker is an automatically operated electricalswitch designed to protect an electrical circuit from damage caused by overcurrent/overload orshort circuit. Its basic function is to interrupt current flow after protective relaysdetect a fault. Unlike a fuse, which operates once and then must be replaced, a circuit breaker can be reset (either manually or automatically) to resume normal operation.

Generally used in a loadcenter, panelboard, or similar device, industrial miniature circuit breakers are a specific type of circuit breaker, used to switch and protect the lowest common distribution voltage in an electrical system.

The manufacturer...

Altech Corp has a long history of manufacturing industrial control products, power distribution components, and much more. In fact, Altech offers nearly all the common products found in enclosures in addition to enclosures themselves. Altech prides itself on quality and is an ISO 9001 certified company with many products that meet UL and international standards. While Altech products meet top tier quality standards, they are also competitively priced and readily available.

Features:

The YC1N Mini Series Family IDEC now offers a new series of IDEC-style contactors and starters, YC Contactors. These contactors feature weld-resistant silver alloy contacts, giving them a higher level of reliability and an extra long life. Contacts are also Cadmium-free for environmental safety.

YC overloads feature bimetallic thermal overload relays directly mounted to the contactor. Plus a full range of accessories are available for this series including top and side mounting auxiliary contact blocks, coil surge suppressors, timers and more. A mechanical interlock accessory can be used when using two contactors to reverse a motor, to prevent both sets of contacts closing at the same time.

Key Features

• 35mm DIN rail or direct panel mounting
• Switching current 5A-300A
• Models available to switch from 1/3HP up to 200HP motors
• Auxiliary contacts available
• 50/60Hz AC coil and DC coil models available
• Silver alloy, Cadmium-free, long-life contacts
• Bimetallic thermal overload relays
• Meets IEC, UL, c-UL and other international standards
• CE marked

View this product in our store

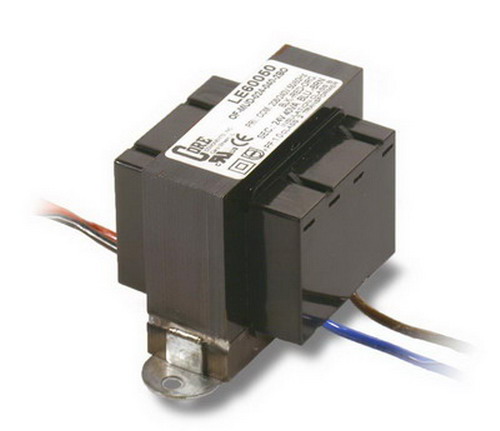

The LE80050 is offered with a built in circuit breaker for protection, foot mount feature with end bells, and multiple taps on the primary side for use in many ranges.

All Core LE transformers are a robust split bobbin laminate design using high quality laminate still built around a class B insulation system making them run cooler and capable for high operating temperatures. With integral resettable circuit breakers on many models, steel, end bell, hub and foot mounts, color coded lead wires or terminal connection, and a wide variety of hub styles, these transformers are very installation friendly. With sizes ranging from 20VA to 375VA, isolation, single and multi primary models ensure they meet the needs of most applications.

Features

• 208/240/480V to 24V
• 300VA
• General Purpose Dual Hub Transformer
• Manual Reset Circuit Breaker
• RoHS
• CE / cULus Listed

View the LE80050 transformer in our store

The LE12100 enclosed transformer is cost effective approach ideally suited for single phase, general purpose industrial and light duty loads. Designed specifically for applications such as: general purpose enclosed application used to adjust a supply voltage to match a load requirement, supplying motor control circuits, signal and alarm systems, industrial lighting and circuit isolation and HVAC applications.

These voltage stepdown transformers are designed to provide a nominal 24 Vac control voltage from their primaries. Parts should be installed in compliance with local and national codes.

Features:

• 96Va 120 To 24Vac
• Class 2 Single Hub Transformer
• Manual Reset Circuit Breaker
• RoHS
• CE / CSA / cULus Listed
• Enclosed Split Bobbin Design with Still And Bells
• Slotted Foot Mounts and Threaded Flange Hubs
• Ul5085-3 listed for US and Canada class 2 class 3 transformer CSA certified

View this transformer at our store

Continuous light, wall mount, chrome body. Red, Amber, Green, Blue LED

LED Tower with two alarm sounds

Patlite has perfected an ultra -slim 37.5mm- profile design that significantly enhances integration with the equipment as a built-in signal system.

Patlite has created a revolutionary patented lighting design in which multiple LEDs project light across a broad peripheral area, ensuring equal intensity at the sides as well as the front. This design, with its side-projection technology, is a unique achievement in signal light design.

IP65 Construction is safe for installation in damp locations and dusty factory environments.

FEATURES

View Patlite Signal Tower at Our Store

NC1V series circuit breakers offer circuit protection for a wide range of devices from sensitive electronic equipment to electrical control circuits.

IDEC NC1V Series of Circuit Protectors are DIN rail mount with finger safe spring up screw terminals and trip current ratings up to 30A. Available in 1, 2 or 3 poles. Optional direct panel mount kit and Relay Voltage trip units available.

Applications include semiconductor manufacturing equipment, electronic controllers, computers, microprocessors, communications equipment, power supplies, machine tools, motors, office equipment, and more.

Features:

Excellent tripping time curve performance

• Flat retractable lever for safety operations

• Slim housing design

• Spring-up terminals

• Fingersafe main circuit terminals

• Color (red/green) contact position indicator

• DIN rail or direct panel mounting (through-panel mounting brackets available

• One and two pole models have both AC and DC voltages in each device

• Auxiliary / alarm contacts

View The NC1V Circuit Breaker In Our Store!

GracePorts are customized PLC ports that allow workers to access control panels without having to open the panel doors.

The P-R2-K3RF0 is a data interface port Connector with category 5 RJ45 F/F Bulkhead and cast aluminum base housing.

The bulkhead interface method permits standard cable connections on both the front and the rear of the unit. Connections are made to and from the interface by way of user-supplied computer cable assemblies.

Devices are for mounting on the flat surface of enclosures having the same type of environmental rating.

How to install?

GracePorts® are intended to be mounted in or on an enclosure product. Installation should be performed by a qualified technician and adhere to applicable regulatory codes. These devices are for mounting on the flat surface of enclosures having the same type of environmental ratings.

Approvals?

UL RECOGNIZED: E207344 (Outdoor Use) CSA: LR110845 (not for interrupting circuit) CE: EN61010/EN60950 (Foreign Power Outlets)

Features:

• 1 - Category 5e Ethernet
• Panel Mount Housing UL Type 4
• Low voltage (data) limited to 30VDC
• Polycarbonate cover
• Thermoplastic elastomer gasket
• Insert material-Acrylic UL94HB

Advanced power supply build for the industrial environment.

Micron's DINergy family of small form DIN rail mounting power supplies provide valuable features and benefits at an economical price point. Robust, heat dissipating construction, 60° C ambient operating rating (no derating necessary), and high quality electronic components provide long life backed by Micron's 3 year warranty for dependable control power in process automation and other control applications. Micron's automatic input voltage matching circuitry senses and adjusts the product to accommodate any input voltage from 100-240VAC without the need for switch actuation. Unlike many competitive product designs employing passive choke filters, DINergy units feature active PFC systems that provide superior harmonic filtering.

Features:

Clamp ties feature a unique head design that provides an even, consistent compression around soft rubber hoses including fuel, water and air vacuum lines. Available in 20 to 60 pound tensile strengths, in 4" and 8" lengths.

The 360 Degree compression ties were designed with underside clamping rails to allow for optimal surface contact and complete circumferential compression around the bundle. The bent tail design allows quick and simple installations by hand. For high volume applications, tension tools are available to ensure consistent and safe installation.

Features:

• Head design contains clamping rails to provide full circumferential compression around bundles.
• Bent tail allows for quick insertion into head.
• Material: Polyamide 6.6 (PA66)
• Type: CTT20R
• Length: 4.0 "
• Width: 0.1 "
• MNT: 20.0 lbs
• Max. Bundle Dia.: 0.51 "
• Min. Bundle Dia.: 0.06 "
• Operating Temp.:-40F to +185F (-40C to +85C)

HellermannTyton's dual clamp ties are designed to provide parallel separation between hoses, wires, cables and tubing, protecting them from abrasion.These ties have an optional mounting hole for securing bundles along the chassis of tracks, trailers, and heavy duty equipment. The unique one-piece design features the dual head centered on the strap.

Features:

• Provides dual separation between bundles to prevent chaffing and abrasion.
• 150 lb. tensile strength ensures enough strength for heavy duty applications.
• Straps are releasable for increased serviceability.
• Material: Polyamide 6.6 high impact modified, heat stabilized, UV resistant (PA66HIRHS)
• Type: DCT11
• Length: 19.2 "
• Width: 0.5 "
• Height: 0.8 "
• MNT: 150.0 lbs
• Max. Bundle Dia.: 2.3 "
• Min. Bundle Dia.: 0.2 "
• Operating Temp.:-40F to +230F (-40C to +110C)

View these products

Core Components manufactures a full line of power supplies for BAS / Automation and HVAC applications.

96VA Enclosed Power Supply

The UL Listed CPS120-024-100 Power Supply is a sturdy self-contained power source rated @ 96VA. It provides simple power connections and has an illuminated control switch on the 24V output, which is fitted with a protective circuit breaker. The unit also provides a convenient unswitched 120V power point and is installation ready.

Features:

Enclosed 96Va Power Supply
120 Vac / 60Hz / 6 Amp Max Input
24 Vac / 60Hz / 4 Amp Max Continuous Output
120 Vac / 60Hz / 5 Amp Max At Unswitched
UL Listed For Us And Canada

96VA Unenclosed Power Supply

The UL Recognized CPS120-024-100U Power Supply is a sturdy compact and complete 24 VAC power source designed for inclusion in a complete control panel unit. The 96VA unit provides simple power connections and has an illuminated control switch on the 24V output, which is fitted with a protective circuit breaker. The unit also provides a convenient unswitched 120V power point and is installation ready.

Features:

Unenclosed 96 Va Power Supply
120 Vac / 60Hz / 6 Amp Max Input
24 Vac / 60Hz / 4 Amp Max Continuous Output
120 Vac / 60Hz / 5 Amp Max At Unswitched
UL Recognized

View All Core Power Supplies

Altech’s compact interface modules provide a flexible, cost effective transition from Sub-D, Ribbon Cable and other connectors to terminal blocks.

Altech’s electronic modules include diode, fuse, varistor, optocoupler (I/O), relay, power supplies and custom modules.

No special wiring or tools are required. Modules are supplied completely assembled with ready to wire screw-cage terminal blocks in an extruded track. The track can be mounted on 35 or 32mm DIN Rail or can be panel mounted.

Ribbon Cable interface modules are typically used in communications, data processing, process control and other industrial applications.

FBK Ribbon Cable Modules are supplied with short strain relief ejector latches (long ejector latches are available), screw-cage clamp terminal blocks and component solder pads for easy insertion of circuit building components. All terminal blocks are individually marked to correspond to the numbers on the header pins.

Features:

• Screw-Cage Clamp Connections
• Up to 64 Poles
• 4 to 5 Component Solder Pads Per Line
• .9mm (.035 in.) Component Mtg. Holes
• DIN Rail Mount, Panel Mount Available

View Altech 5726.2/L Interface Module

Manufactured by Micron Industries, B3K0-2291-GAH is a Power Transformer. As the industry-leader for more than 40 years - and the only major electrical manufacturer to focus exclusively on transformers and power supplies, Micron is the supplier of choice for leading OEM manufacturers around the world.

In response to the change in compliance standards for CE marking of industrial control transformers as required by IEC/EN guidelines, Micron has introduced new GlobalTRAN models in compliance with EN61558-2. This new IEC/EN standard replaces the previous IEC/EN 60742 standard for control power transformers that expired on December 31, 2003. The Micron design engineering department has produced 61558-2 compliant designs that permit the customer to retain mounting layouts used for the previous Micron 60742 designs.

GlobalTRAN® products carry the CE mark, certifying 100% compliance with requirements of EN61558 for Non-Short Circuit Proof Isolating Transformers. GlobalTRAN control transformers feature touch-proof terminals, utilizing either Micron’s SafeTouch terminal covers or a touch-proof terminal block, and meet true IP-20 or IP-00 terminal protection ratings as defined by IEC-529.

GlobalTRAN is the most reliable and versatile control transformer in the industry today.

• Carries the CE mark
• 20-year warranty, double the industry standard
• Epoxy encapsulated coils for cooler, safer operation
• SafeTouch terminals for additional safety
• Optional integral primary and/or secondary fusing
• 10-32 screw terminals, molded terminal barriers
• Molded-in terminals and phil-slot screws

View all GlobalTran Transformers

The S51 series offers a cost-effective solution in M18 photoelectric sensors, with a wide range of operating distances. The diffuse proximity model has a 10cm fixed operating distance with a wide emission spectrum. Also available is a version with a 1 - 40cm adjustable operating distance.

Standard retro-reflective models have an operating distance up to 4m while the polarized retro-reflective models, used for reliable detection of reflective objects, are fitted with a sensitivity adjustment and have a 3.5m operating distance.

The emitter and receiver models, used for longer operating distances, reach 18 meters.

The S51 series sensors, with cable or M12 connector and PNP or NPN output, provide a 3-wire connection configuration in compliance with the EN60947-5-2 standard.

The normally open output is activated in light mode in proximity models and in dark mode in retro-reflective models. The output mode can be inverted using the dark/light selection input wire provided, making these extremely versatile sensors.

This sensor is Ideal for packaging, bottling and material handling applications!

Features:

• Flat plastic housing
• Cable or M12 connection with NPN or PNP output
• Standard 3-wire connection configuration
• Selectable dark or light output

View IDEC Universal Tubular Sensor

Do you want to improve your functionality and drive productivity?

If the answer is YES, than Patlite has the right product for you and Lectro Components can deliver it directly to your workplace.

We introduce you to the LME series, multi- color LED Signal towers with 1 to 5 lights.

Ideally suited for industrial manufacturing and process control environments, LME Signal towers are commonly used on equipment to provide visual and audible indicators of a machine state or process event to machine operators, technicians, production managers and factory personnel.

This signal tower has high visibility from any angle and adjustable volume (Max.85dB at 1m). It comes with a dual reflection system. It consist hybrid prism-cut lens and 5 color led modules which creates a bright, distinctive and even illumination.

The LED modules are easy to add or remove. This product has changeable color sequence: easy to add/remove up to 5 colored modules even after installation. The LED Module colors correspond to the wiring , so re-wiring is not necessary.

Features

PATLITE's Exclusive Hybrid Prism Cut Lens: For enhanced visibility from any direction and distance.

Original Dual Reflection System: For enhanced light diffusion, creating bright distinctive illumination while saving energy
FB type: 2 selectable built-in alarms with adjustable volume up to 90dB at 1m.
Direct or pole mount installation .
Interchangeable LED module: No re-wiring even after installation.
Main Body: Superior impact and heat resistant ABS resin.
Lens: Superior weather resistant and light translucent AS resin.
NPN/PNP Compatible: Except 100/220V AC LME-U type, compatible with NPN only.
Available Colors: Red, Amber, Green, Blue, Clear/White

Protection:

oIP-65 (LME, LME-W)

oIP-54 (LME-FB, LME-FBW)

oType 4 / 4X / 13 (indoor, direct-mount only)

Functions

- Continuous Only
- Continuous, Flashing, Alarms
- Dry contact closure such as switches or relay contacts
- Open-collector transistor (NPN or PNP for DC24V, NPN for AC120V)
- Direct voltage control for DC24V, continuous and Alarm functions only

The LE12100 is Lectro Component’s most popular transformer. Ideally suited for general purpose, industrial and light duty loads, Core enclosed transformer offers an efficient and economical solution for HVAC applications, signal and alarm systems, motor control circuits, lighting and circuit isolation.

The LE12100 enclosed control transformer is a Class 2 Single Hub Transformer and has both the primary and secondary wires exiting the same side, and will only show one hub style.

Features and Benefits

• Resettable circuit breakers
• Color coded wires
• Threaded hub
• Installation instructions

Lectro Components specializes in transformers and we sell a broad spectrum of enclosed, open frame, single phase models.

Our Brand Core Components designs and manufactures a wide range of high quality control transformers to suit many applications in the building automation, HVAC and lighting industries.

View the LE12100 Transformer in our store.

Or give our transformer specialists a call at 1-800-323-2282

Transformer is an electrical device that can transform electricity from high to low voltage and the other way around.

A simple transformer consists essentially of two coils of insulated wire. In most transformers, the wires are wound around an iron-containing structure called the core. One coil, called primary, is connected to a source of alternating current that produces a constantly varying magnetic field around the coil. The other supplies the power to a load and is called the secondary coil.

The ratio of the number of turns in the primary coil to the numbers of turns in the secondary coil- the turns ratio-determines the ratio of the voltages in two coils. For example, if there is one turn in the primary and ten turns in the secondary coil, the voltage in the secondary coil will be 10 times that in the primary. Such transformer is called a step-up transformer.

If there are ten turns in the primary coil and one turn in the secondary the voltage in the secondary will be one- tenth that in the primary. This kind of transformer is called a step-down transformer.

Application of transformer:

The most important uses and application of transformers are:

It can increase or decrease the value of capacitor, an inductor or resistance In an AC circuit. It can thus act as an impedance transferring device.

It can be used to prevent DC from passing from one circuit to the other

It can isolate two circuits electrically.

View these transformers in our store

Or give our transformer specialists a call at 1-800-323-2282

IDEC 6mm interface relays provide a compact solution for general purpose relay requirements. Now available with solid state models, the RV8 series Interface relays are ideal for PLC and electronic systems, industrial automation, panel builders, assembly machine applications and other applications that require a high switching capability in a compact space.

The RV8 series interface relays can be used as interfaces between the controller and the actuator to switch small and medium size loads.

Key Features

How relays work

Relays are simple switches which are operated both electrically and mechanically. Relays consist of an electromagnet and also a set of contacts. The switching mechanism is carried out with the help of the electromagnet. There are also other operating principles for its working. But they differ according to their applications. Most of the devices have the application of relays.

The main operation of a relay comes in places where only a low-power signal can be used to control a lot of circuits. It is also used in places where only signal can be used to control a lot of circuits.The high end applications of relays require high power to be driven by electric motors and so on. Such relays are called contactors.

Different types of relays

There are different types relays that are available for industrial use:

Solid-state relays, contactors, protective relays, digital protective relays, latching relay..etc..

The 135 Series Power Distribution Blocks have adequate spacing for most OEM and field applications due to their meeting UL 1953 (Power Block Standard) requirements.

They are listed for general installation, and they meet the feeder circuit terminal spacing requirements per UL508A section 10.2 (which is 1" through air and 2" over surface at 600V), so they can be used in "as supplied condition". The UL identifier on each block would also allow an inspector to complete an inspection faster, since there would be no need to check "conditions of acceptability".

The 135 Series Power Distribution Blocks comply with National Electric Codes (NEC) for use in service equipment, so they are suitable for applications where system components must be connected in the field, including industrial control panel feeder/branch circuits, splicing and tapping conductors in junction boxes, termination boxes, and similar applications. Since these blocks are UL Listed and service equipment rated, they can be used in the connection of modular tower sections for wind turbines, for large motor connections such as water lifting and material handling, and for interconnection of multiple panels in control and power distribution systems.

With finger-safe contact block offering IP20 protection, IDEC switches from the HW series are made with the best materials in the world. These internationally rated 22mm switches include illuminated and non ‑illuminated push buttons, pilot lights, selector switches, and emergency stops. The HW series are IEC style devices that feature tamper proof mounting and construction, modular stackable contact block. All switches also incorporate mechanically keyed safety locking levers, ensuring correct installation and maintaining safety in high‑ vibration applications.

Features and Benefits

• Easy to assemble
• LED or incandescent illumination
• UL Listed, CSA certified, TUV approved, and CE marked
• Tamperproof construction
• Modular construction for maximum flexibility
• Double nickel plated terminal screws

Push buttons Application

Push buttons switches are typically used in push-button telephones, calculators, kitchen appliance magnetic locks, and various other mechanical and electronic devices, home and commercial. They are often color-coded to associate them with their function so that the operator will not push the wrong button in error.

The PS3L series are traditional metal- frame power supplies with worldwide approvals and output capacities up to 300W with 5, 12, 24VDC versions.

PS3L series replaces the PSR, PS3E and PS3C series IDEC Power supplies. PS3L series features a sturdy metal frame and a form factor that requires less panel space than the IDEC PS5R series power supplies. PS3L: series is a finger safe with output capacities ranging from 10W to 300W with 5V, 12V and 24DC versions.

A variety of mounting brackets allow for DIN rail mounting or several orientations of direct surface mounting. Universal voltage input and worldwide approvals ensure that a panel or a machine needs only be designed once to use anywhere in the world.

Key Features

• Universal input (DC compatible)
• Finger-safe terminals
• Optional DIN rail brackets
• Worldwide approvals: UL, CSA, TUV and CE
• UL 508 listed, UL 1950 recognized
• CE marked (LVD and EMC)
• CSA No. 14, CSA No. 950 certified
• Models from 10W to 300W
• Output voltages 5V DC, 12V DC, 24V DC
• 50W, 100W, 150W, 300W have built-in harmonic PFC circuits (EN61000-3-2)

These 6" LED recessed downlight kits are perfect for residential spaces such as kitchens and basements and light commercial application such as boutiques and hotels. P Series is up to 86 percent more efficient than incandescent luminaries giving you up to 46 years of expected life ( 50,000 hours at 3 hours per day).

The P Series 6 can fit 6-inch recessed can-style housing making it great for both new construction and retrofit applications. It can retrofit 65W to 100W incandescent lamp. P Series in Matte White is wet rated for installation in any indoor location.

Product Features:

• Lumens: 725
• Light Color: 3000 K (Bright White)
• CRI: 83
• Lifetime: 50,000 Hours
• Input Voltage: 120V
• Input Power: 12.7W
• Manufacturer: Lithonia Lighting
• Model #: 6BPMW LED
