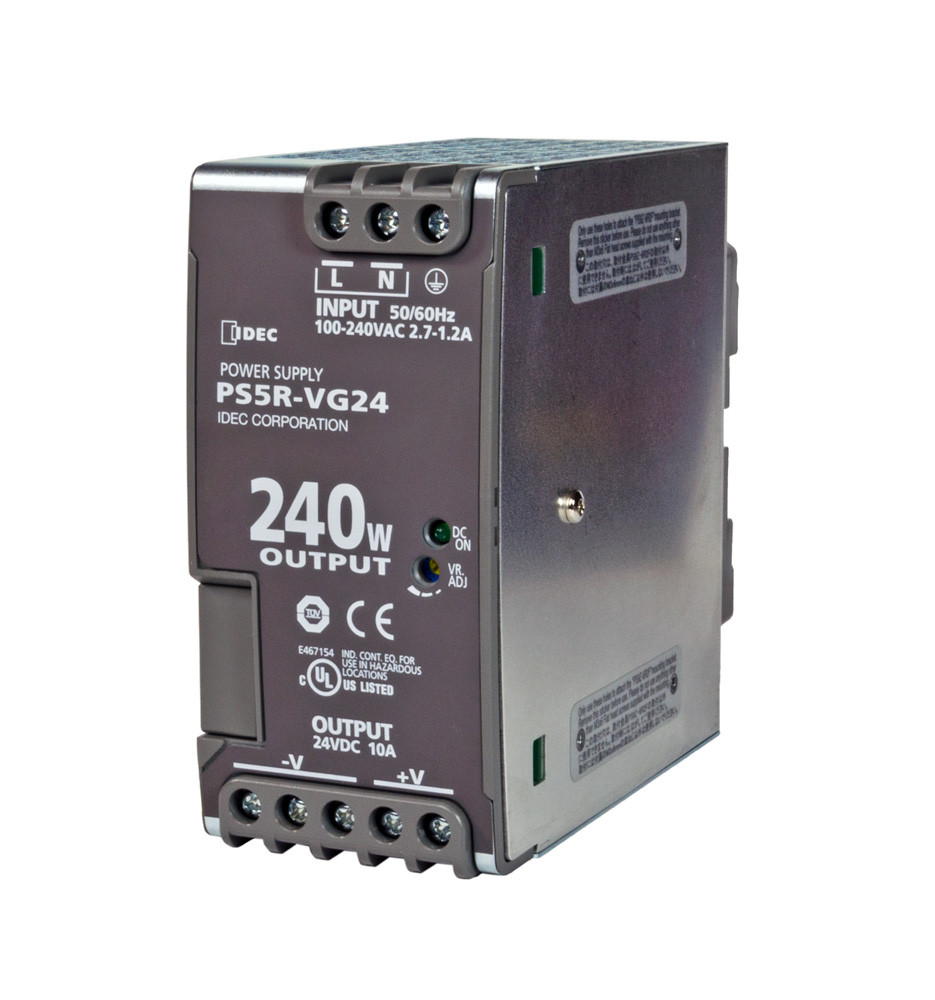

IDEC PS5R-VG24 Power Supply 240W 24VDC DIN

Key Features: Compact size preserves panel space Slim size (width): 22.5mm (10W/15W/30W) 36mm (60W/90W) 46mm (120W) 60mm (240W) Universal Voltage Input: 85-264V AC/100-370V DC Wide operating temperature range Spring-up terminals accept ring & fork terminals Approved for use in Class I Division 2 hazardous locations Can be installed in 6 directions DIN-rail or panel mount Overcurrent protection with auto-reset Meets SEMI F47 Sag Immunity (208V AC input) RoHS compliant Five-year factory warranty Product Type Din Rail Mount Input Voltage Universal Input 85-264VAC;100-370VDC Output Voltage 24V DC Output Power 240W Output Current 10A Operation Indicator LED (Green) Special Certifications Class1-Div2 Rated, UL508, SEMI F47 Terminal Type Spring-up M3.5 screw terminals Dimensions 125 x 60 x 125mm
