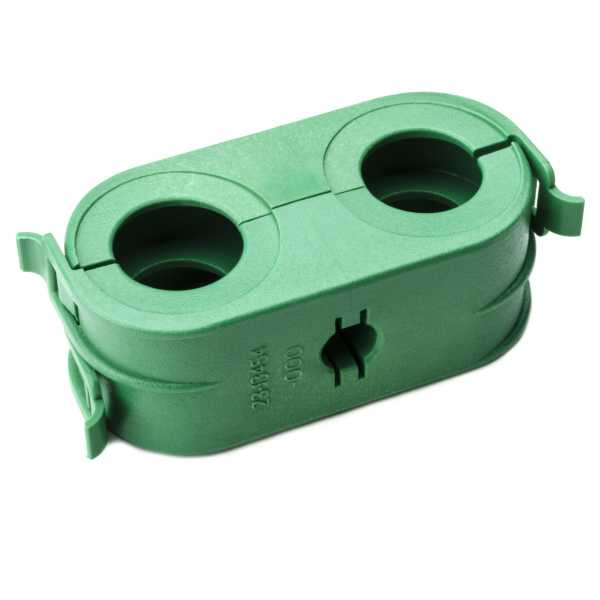

HellermannTyton 133-00994 Seperation Clamp

HC Clamps - Bundle Separator, Two Hole, PA66GFHIRHS, Green, 500/pkg

HC Clamps separate multiple bundles and secure them to brackets or frame rails. Each mount has two pawls for easy pre-installation on a threaded fastener prior to securing with a mechanical fastener. HC Clamps have ribs that make them ideal for convoluted tubing, but they can also be used to separate separate bundles that aren't protected with convoluted tubing.

- Separates and secures bundles avoiding abrasion
- Designed to handle both convoluted tubing and bundles not covered in convoluted tubing
- Come in a variety of sizes and colors to be easily identified

Std. Pack: 500
Color: Green (GN)
Material: Polyamide 6.6 high impact modified, heat stabilised, Glassfibre reinforced (PA66HIRHSGF)
Type: HC2B
Length: 2.747 "
Width: 1.1 "
Height: 1.376 "
MNT: NA
Max. Bundle Dia.: 0.685 ";0.685 "
Min. Bundle Dia.: NA
Reel Length: NA
Wall Thickness: NA
Supplied Diamater: NA
Operating Temp.:-40F to +250F (-40C to +121C)
Labels Per Column: NA
Labels Per Row:NA
Labels Per Sheet: NA

    View/Download HellermannTyton Spec Sheet
