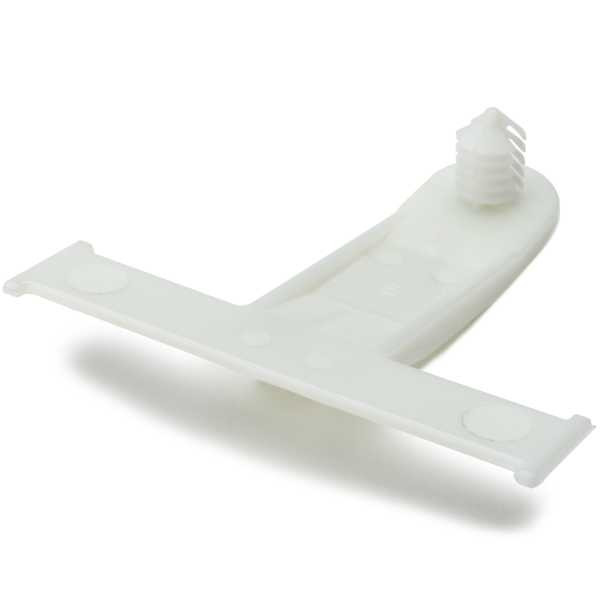

Standoff Tape Clip, Panel Thickness 0.02" - 0.27", PA66HIRHS, Natural, 3,000/box
Bundling clips are designed to provide simple and easy methods of securing cable bundles, hoses, or pipes. They are fastened onto the tape bar using bundle or cable ties. The different fixing orientations allow tape clips to be used with a wide range of panel thicknesses and hole diameters. Standard bundling clips are available as well as standoff and stud mount versions.
- Staggered fir tree branch design provides low insertion forces and high extraction forces.
- Initial fir tree serves as a locating feature for assistance in blind assembly applications.
Std. Pack: 3000
Color: Natural (NA)
Material: Polyamide 6.6 high impact modified, heat stabilized, UV resistant (PA66HIRHS)
Type: SOC11FTOVAL
Length: 2.0 "
Width: NA
Height: 0.8 "
MNT: NA
Max. Bundle Dia.: NA
Min. Bundle Dia.: NA
Reel Length: NA
Wall Thickness: NA
Supplied Diamater: NA
Operating Temp.:-40F to +230F (-40C to +110C)
Labels Per Column: NA
Labels Per Row:NA
Labels Per Sheet: NA
