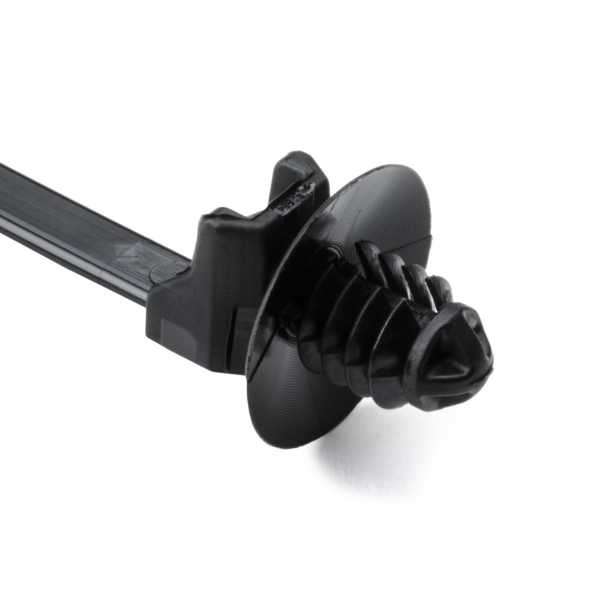

HellermannTyton 155-05800 Fir Tree Mount Cable Tie

Fir Tree with Tie, 6.0" Long, Mounting Hole Diameter .26"-.28", PA66HIRHS, Black, 1,500/pkg

Fir tree mounts with ties cables provide a secure grip in mounting holes and protect against dirt and other impurities. The mount provides low insertion and high extraction force.

- Friction tab inside of fir tree allows tie to sit in mount without falling out prior to installation.
- Initial fir tree serves as a locating feature for assistance in blind assembly applications.
- Disc feature provides anti-rattle protection in high vibration applications.

Std. Pack: 1500
Color: Black (BK)
Material: Polyamide 6.6 high impact modified, heat stabilized, UV resistant (PA66HIRHS)
Type: T50SOSFT6E
Length: 6.0 "
Width: 0.19 "
Height: 0.33 "
MNT: 50.0 lbs
Max. Bundle Dia.: 1.4 "
Min. Bundle Dia.: 0.04 "
Reel Length: NA
Wall Thickness: NA
Supplied Diamater: NA
Operating Temp.:-40F to +221F (-40C to +105C)
Labels Per Column: NA
Labels Per Row:NA
Labels Per Sheet: NA

    View/Download HellermannTyton Spec Sheet
