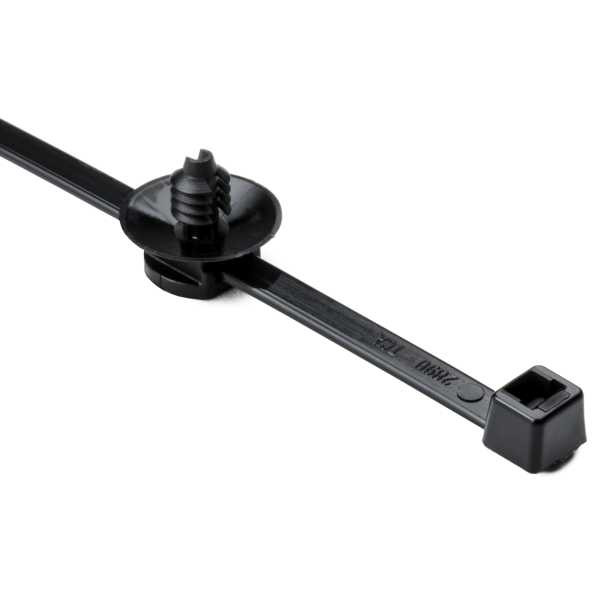

HellermannTyton 156-00025 Fir Tree Mount Cable Tie

Fir Tree with Tie, 8.0" Long, Mounting Hole Diameter .17"-.20", PA66HS, Black, 500/pkg

HellermannTyton's fir tree mounts provide a secure grip in a mounting hole and protect against dirt and other impurities. The mount can slide along the strap of the cable tie for proper orientation. The fir tree mounts are designed to provide a low insertion force and high extraction force. This mount is sold as an assembly with the cable tie.

- Staggered fir tree branch design provides low insertion forces and high extraction force.
- Initial fir tree serves as a locating feature for assistance in blind assembly applications.
- Disc feature provides anti-rattle protection in high vibration applications.

Std. Pack: 500
Color: Black (BK)
Material: Polyamide 6.6 heat stabilized (PA66HS);Polyamide 6.6 high impact modified, heat stabilized, UV resistant (PA66HIRHS)
Type: T50RFT5
Length: 8.0 "
Width: 0.18 "
Height: 0.05 "
MNT: 50.0 lbs
Max. Bundle Dia.: 2.0 "
Min. Bundle Dia.: 0.06 "
Reel Length: NA
Wall Thickness: NA
Supplied Diamater: NA
Operating Temp.:-40F to +221F (-40C to +105C)
Labels Per Column: NA
Labels Per Row:NA
Labels Per Sheet: NA

    View/Download HellermannTyton Spec Sheet
