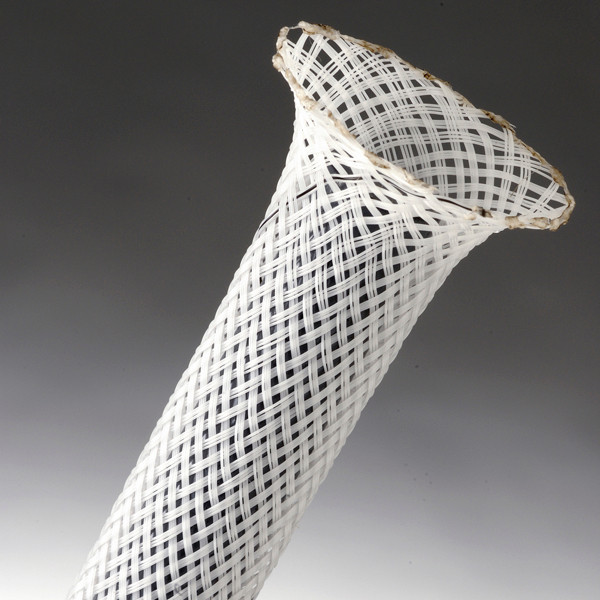

HellermannTyton 170-03107 Braided Sleeving - Flame Retardant

Plenum Rated Expandable Braided Sleeving (Halar), 0.75" Dia., White, 75.0 ft/Reel

Halar self-extinguishing sleeving is used where flammability, high temperature endurance and low outgassing are the primary concern.

- Meets UL 2024 and NFPA 262 specifications meets requirements for use in plenum applications.
- Technically advanced monofilament material is rated as low smoke, flame resistant and can withstand exposure to Cobal 60 radiation.
- Exceeds requirements of FMVSS 302 as well as aviation industry requirements of FAR25.

Std. Pack:
Color: White (WH)
Material: Polyamide 6.6 (E/CTFE)
Type: BSHLR3410
Length: 75.0 ft
Width: NA
Height: NA
MNT: NA
Max. Bundle Dia.: 1.25 "
Min. Bundle Dia.: 0.5 "
Reel Length: 75.0 ft
Wall Thickness: NA
Supplied Diamater: NA
Operating Temp.:-103F to +302F (-75C to +150C)
Labels Per Column: NA
Labels Per Row:NA
Labels Per Sheet: NA

    View/Download HellermannTyton Spec Sheet
