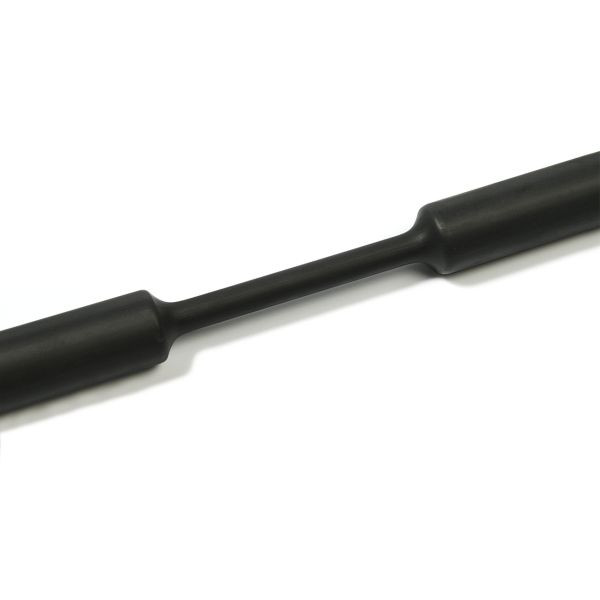

HellermannTyton 300-73603 Heat Shrink Tubing 2 to 1

Heat Shrink Tubing, 2:1, 1/8", 3.2/1.6 dia., Polyolefin, Black, 1000.0 ft/reel

TCN20 Heat Shrink is a general purpose, thin wall tubing used to protect electrical and mechanical wiring. Polyolefin material is self extinguishing and resistant against common fluids and solvents. The low shrink temperature and mechanical strength make this tubing widely used in the electric and electronics industry. Available in a wide range of diameters up to 2.0 (50.8mm) and multiple lengths. TCN20 Heat Shrink is UL224 125C 600V VW-1 and RoHS.

- Tubing is 2:1, thin wall and self extinguishing providing good resistance to common fluids and solvents.
- Low shrink temperature gives excellent physical and electrical performance.
- Available in multiple diameters and lengths offering several options to fit specific needs.

Std. Pack: 1000 ft
Color: Black (BK)
Material: Polyolefin, cross-linked (PO-X)
Type: TCN20-3.2/1.6
Length: 1000.0 ft
Width: NA
Height: NA
MNT: NA
Max. Bundle Dia.: NA
Min. Bundle Dia.: NA
Reel Length: NA
Wall Thickness: NA
Supplied Diamater: 0.12 "
Operating Temp.:-67F to +257F (-55C to +125C)
Labels Per Column: NA
Labels Per Row:NA
Labels Per Sheet: NA

    View/Download HellermannTyton Spec Sheet
